Product Details

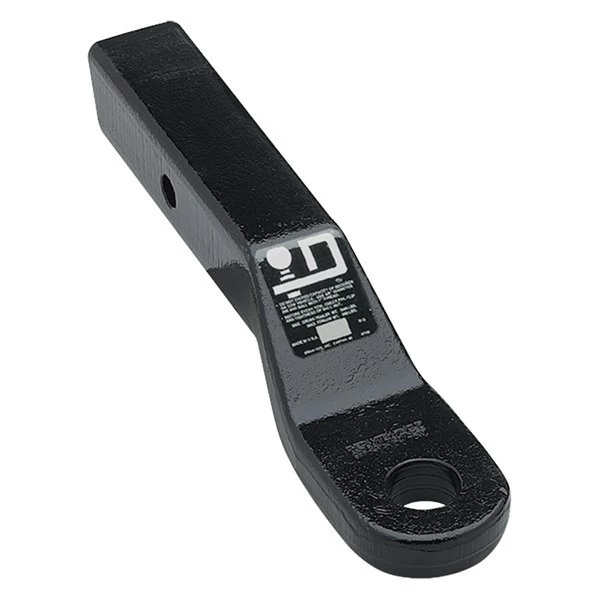

Universal Class 5 2″ Drop / 1″ Rise Black Ball Mount for 2″ Receivers (40330) by Draw-Tite®. Shank Length: 8-1/2″. Weight Capacity: 16000 lbs GTW / 1600 lbs TW. Ball Hole: 1-1/4″. These ball mounts fit an industry-standard receiver hitch mount. Simply choose the correct-rated and correct-sized ball to match. This top-grade product is expertly made in compliance with stringent industry standards to offer a fusion of a well-balanced design and high level of craftsmanship. Manufactured from industry-leading materials using up-to-date equipment, it ensures everlasting reliability and enduring value. This product is distinguished by total quality assurance, unsurpassed by anybody else.

Notes:

Always consult your vehicle’s owner’s manual for actual weight capacities.

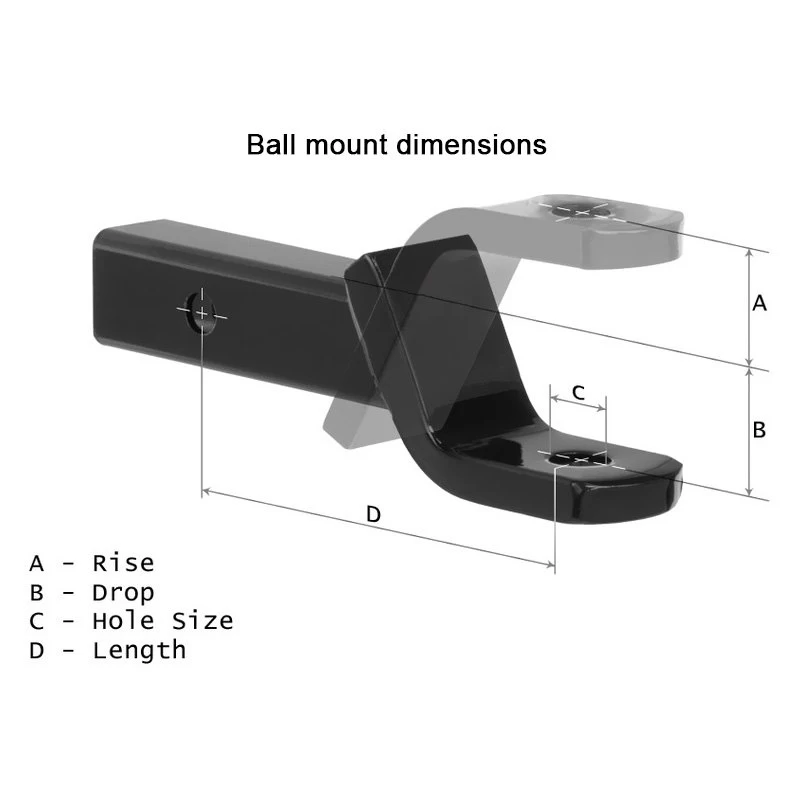

Specifications:

Weight Carrying (WC): Up to 2400/16000 lbs

Finish: Black Powder Coat

Receiver Size: 2″

Shank Length: 8-1/2″

Drop: 2″

Rise: 1″

Ball Hole Size: 1-1/4″

Features:

Solid one-piece forged construction
1″ thick x 3″ wide ball platforms
Angled, easy-load design
Black powder coat finish over A-Coat
Fits 2″ square receiver tube opening

You’ll need to choose your ball mount carefully. The most important consideration is the weight of the trailer you’ll be towing, followed closely by the GTW (Gross Towing Weight) of your tow vehicle. Be certain that every single component – receiver, ball mount, and ball – on your vehicle is rated to tow the biggest trailer you’ll ever tow. (Don’t forget that odds are, eventually someone is going to ask you to tow their trailer, not yours. Their big, heavy trailer.) We recommend rating the ball mount and ball to match the maximum towing capacity of your vehicle, not the weight of the trailer you want to tow today.

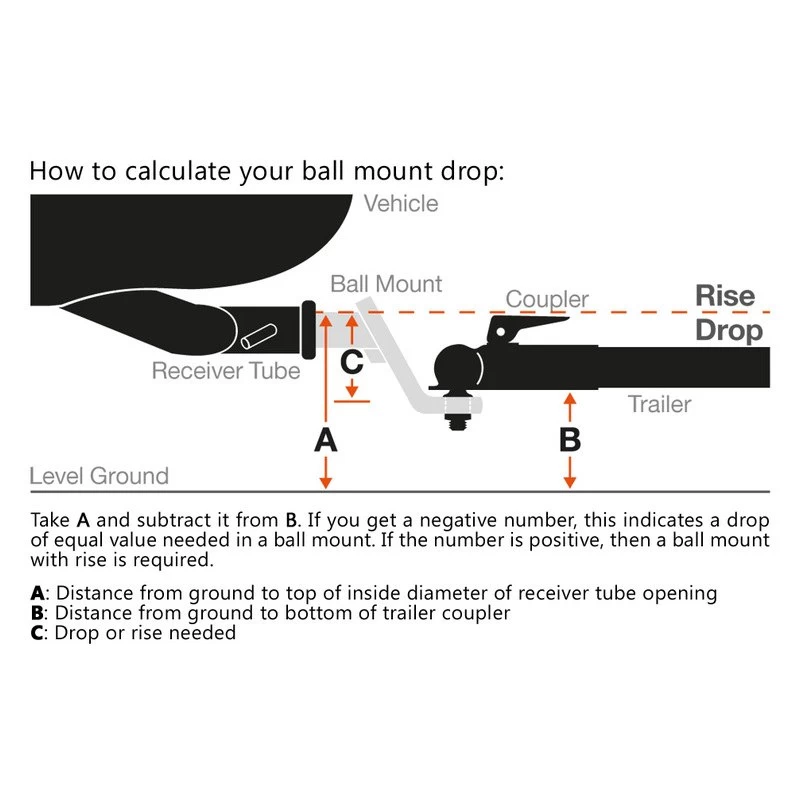

Choose a ball mount that will make your trailer as level as possible when the hitch is coupled. You may need a mount with some drop or rise, depending on the trailer and tow vehicle’s relative heights. Don’t forget to account for the tow vehicle squatting when it takes the weight of the trailer on the hitch.

Remember to keep the ball mount as short as feasible, because the further the ball is behind the rear axle, the more the trailer will steer the tow vehicle on a windy day. Also, the further back the ball is, the more the tongue weight of the trailer will push down your rear suspension.

Draw-Tite® is the premier brand of custom trailer hitches. Established in 1946 and created with a passion for outstanding performance the brand has come to represent one of the best custom fit vehicle products available today. Each hitch design must pass rigorous testing to become TESTED TOUGH™. The addition of increased tongue weight capacity and an all new accessory pairing guide make the Draw-Tite brand your best choice for years of dependable service.

Brand:

Draw-Tite

Part Number:

40330

UPC:

742512403305
